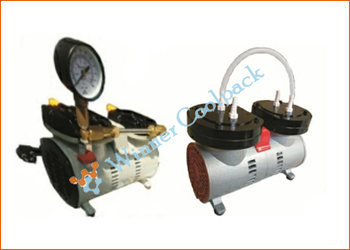

WINNER COOLPACK make WDP Series diaphragm type Vacuum pumps & Compressor which are manufactured from special grade aluminium for light weight and good strength. Diaphragms are made of NYLON/PTFE reinforced neoprene, Viton rubber. Valves are SS 316 while special sealed bearings are used hence no lubrications is required.
Main Features :
• Noiseless performance, Absolutely Portable
• Totally Oil - free construction Practically maintenance free
• Special diaphragms available (TEFLON / VITON etc)
• Built - in micro suction filter
• Extra large bearings for trouble - free and smooth running
• Pump available with chemical resistive parts
• PP / PVC / TEFLON / SS contact parts)
• Motors available in single a well as three phase construction
Application:
• Chemical & Pharma Laboratories, Filtration, Degassing, Solvent distillation.
• Pollution Control Equipments, Material Handling Equipments.
• Labelling Machine, Glass forming, paper printing, Pick & Place.
• Medical Equipments.
Technical Data:
| Model | Max Flow (LPM) | Max Vacuum (Inch/Hg) | Max.Pressure (psig) | Approx. Weight (Kg) | Motor (Hp) |
|---|---|---|---|---|---|
| WDP - 15 | 15 | 22 | 25 | 2.7 | 1/20 |
| WDP 15 WD | 15 | 22 | 25 | 2.5 | 1/20 |
| WDP 25 S | 15 | 27 | 35 | 4.1 | 1/16 |
| WDP 25 P | 25 | 22 | 25 | 4.2 | 1/16 |
| WDP 45 S | 45 | 22 | 35 | 6.2 | 1/8 |
| WDP 75 S | 45 | 27 | 55 | 9.0 | 1/4 |
| WDP 75 P | 75 | 22 | 40 | 9.0 | 1/4 |
| WDP 25 WD | 15 | 27 | 25 | 3.5 | 1/16 |
| WDP 45 WR | 28 | 22 | 10 | 5.8 | 1/8 |
| WDP 75 WR | 38 | 22 | 10 | 8.7 | 1/4 |
| WDP 45 W | 35 | 22 | 20 | 18 | 1/4 |
